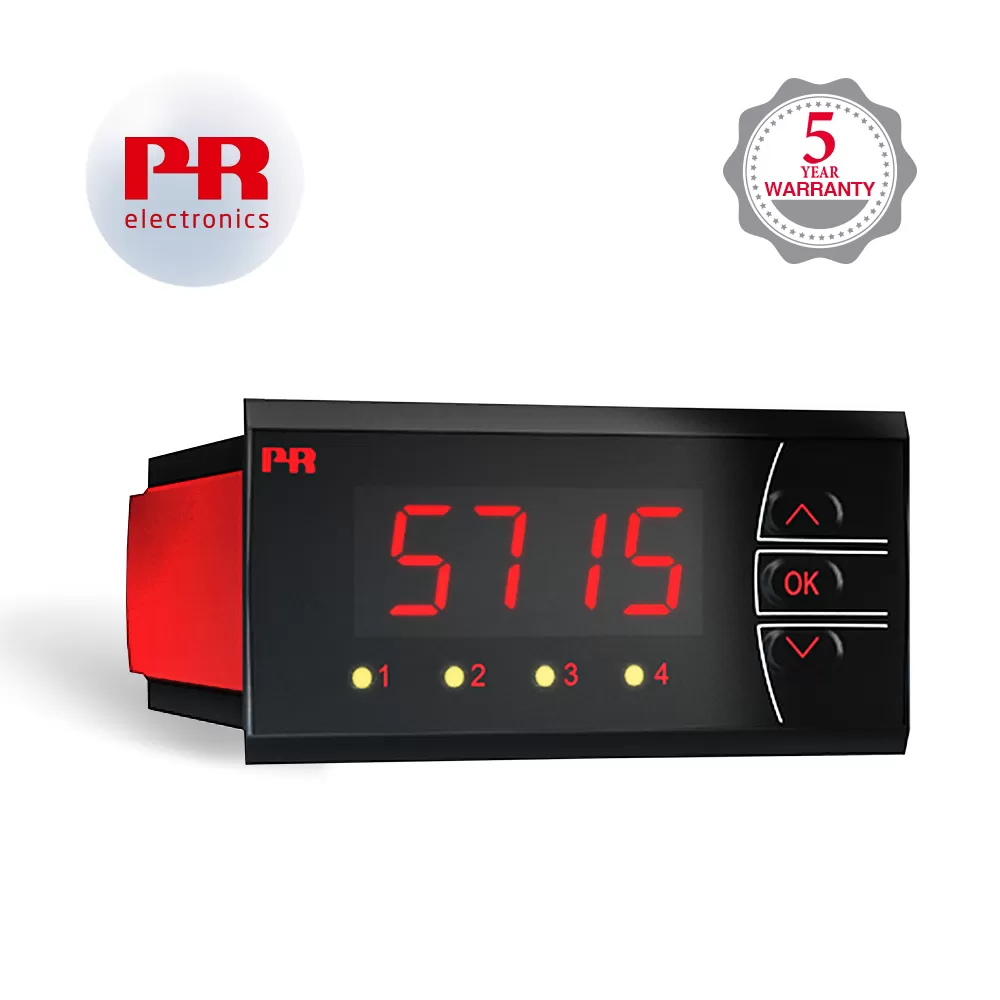

Programmable LED indicator 5715

Application

• Display for digital readout of current / voltage / resistance / temperature or 3-wire potentiometer signals.
• Process control with 4 pairs of potential-free change-over relays and analog output.
• For tank level control, with the possibility of customer linearization ensuring correct level measurement and control in non-linear tanks.

Technical characteristics

• 4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999…9999 with a programmable decimal point and relay ON / OFF indication.
• All standard operational parameters can be adjusted to any application using the front function keys. When programming is carried out through a PC and the configuration program PReset, additional configuration options are available, such as customer-defined linearization and special input signals.
• Help texts in eight languages can be selected via a menu item.
• A menu item allows the user to minimize the installation test time for the relay outputs by activating/deactivating each relay independently of the input signal.
• 2.3 kVAC galvanic isolation between input, output, and supply.

Mounting / installation

• To be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X). For extra protection in extreme environments, PR 5715 can be delivered with a specially designed splash-proof cover as an accessory.
