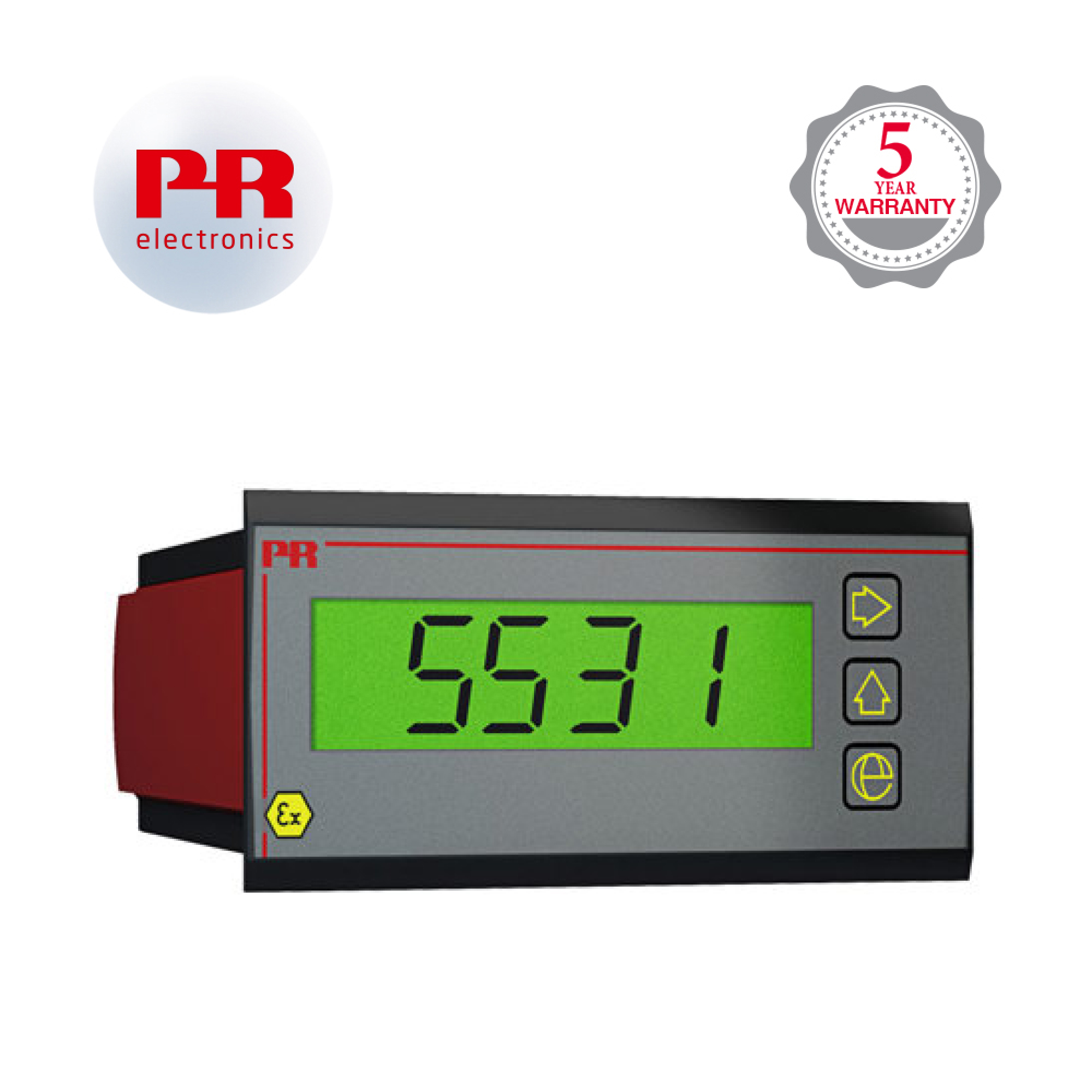

Loop-powered LCD indicator 5531B

Application

• The 5531 indicator is powered by the 4 to 20 mA current loop and is easily scaled to display the correct process value.
• Because it does not require separate power wiring, the 5531 is perfect for remote display of process loops.
• The 5531B can be mounted in Ex Zone 1.
• The 5531B1 Ex display includes the 8501 enclosure and can be mounted in Ex Zone 2 or 22 (gas or dust).
• The 5531B2 includes the 8501 enclosure and can be mounted in Ex Zone 1, 2, 21 or 22 (gas or dust).

Technical characteristics

• With a full measurement range of 3.6 to 23 mA, the 5531 is NAMUR NE43 compliant.
• The display can be push-button scaled to any range between -9999 to 9999, and reverse display action is possible.
• The LCD backlight can be set to half or full intensity for easy viewing in low light conditions.
• The display only requires 1.5 VDC, (75 Ω loop load), with the backlight turned off.
• The input is HART transparent.
• The front push-buttons can be disabled to prevent unauthorized adjustment.

Mounting / installation

• Once panel mounted with the included gasket, the 5531 provides IP65 ingress protection.

Note

• Not suitable for new installations requiring certification to the latest ATEX standards - see ATEX certificate KEMA 05ATEX1105X and Declaration of conformity for details.
